Civil 3D: Alignment → Feature Line → Polyline Workflow

Introduction

Civil 3D is a powerful tool used in infrastructure and road design projects. One of the most important workflows in real-world engineering is converting alignment into feature line and then into polyline. This process is essential for creating clean, editable, and accurate boundaries for surfaces and corridors.

Understanding the Workflow

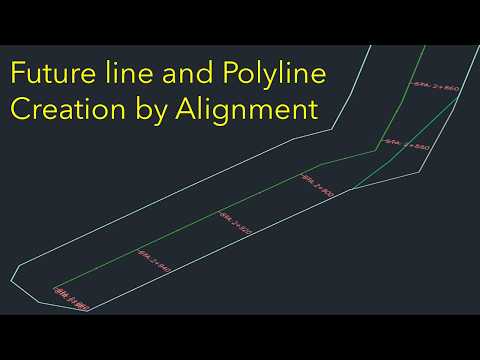

The workflow begins with an alignment, which represents the centerline of a road or project. From this alignment, a feature line is created. Feature lines carry elevation data and provide better control over geometry. Finally, converting the feature line into a polyline allows for flexible editing and precise boundary creation.

Step-by-Step Process

• Create or select an alignment
• Convert alignment to feature line
• Assign elevations using surface data
• Convert feature line into polyline
• Use polyline for surface boundary

Why This Workflow Is Important

Direct boundary creation often results in errors or rough geometry. By following this structured workflow, engineers can ensure high precision and professional output. This is especially important in large infrastructure projects where accuracy impacts cost and safety.

Applications in Real Projects

This workflow is widely used in road design, highway modeling, and corridor development. Engineers use it to define project limits, calculate earthwork volumes, and create realistic models for construction planning.

Pro Tips for Better Results

• Always verify elevations before converting
• Clean feature lines to remove unwanted vertices
• Use polylines for final boundary application

Common Mistakes to Avoid

• Skipping feature line step
• Using unclean geometry
• Incorrect boundary selection

Conclusion

The alignment to feature line to polyline workflow is a must-know technique for any Civil 3D user. It improves accuracy, enhances workflow efficiency, and ensures professional-quality results.
