Deference in Pressure Pipe Nework and Pipe Network In Civil 3d

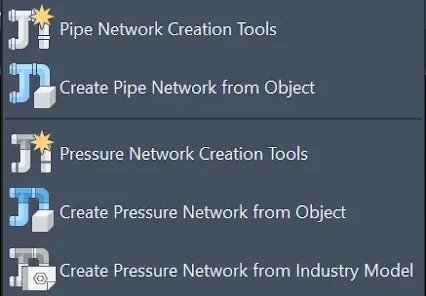

Pressure Networks vs Pipe Networks

Pressure Networks and Pipe Networks are two different tools designed  In Civil 3D, for modeling underground utilities, each catering to specific types of systems. Here’s a comparison:

1. Pressure Networks

Purpose: Used for pressurized systems such as water supply, force mains, or gas pipelines.

Flow Mechanism: Flow is driven by pressure, typically generated by pumps or gravity from elevated tanks.

Components: Includes pipes, fittings, and appurtenances such as valves, hydrants, and elbows.

Profiles: Profiles include both the pressure network and ground surface, allowing you to design pressure systems with slope adjustments and pressure calculations.

Editing: Allows for dynamic updates, such as adjusting pipe lengths when fittings (like elbows or tees) are moved.

Analysis: Often used with hydraulic modeling tools (e.g., WaterGEMS) for further analysis.

2. Pipe Networks

Purpose: Used for gravity systems, such as storm sewers, sanitary sewers, and culverts.

Flow Mechanism: Flow is driven by gravity, depending on the slope and pipe size.

Components: Includes pipes and structures like manholes, catch basins, and inlets.

Profiles: Profiles show pipes and structures, along with the ground and hydraulic grade lines (if applicable).

Editing: Designed with structures at nodes and pipes in between; adjustments can be made based on vertical and horizontal alignments.

Analysis: Can interface with tools like Storm and Sanitary Analysis (SSA) or HEC-RAS for hydraulic modeling.

Key Differences:

Feature                     Pressure Network                                Pipe Network

Flow Type             Pressurized                                            Gravity-driven

Use Cases         Water mains, gas pipelines                 Sewers, drainage, culverts

Components         Pipes, fittings, valves, hydrants         Pipes, manholes, catch basins

Profiles                 Includes pressure and ground levels Includes hydraulic and ground levels

Design Focus         Pressure adjustments, appurtenances Slope, inverts, gravity flow

Analysis Tools Hydraulic analysis with WaterGEMS Storm & Sanitary Analysis (SSA)

Both tools are essential for civil engineers, but the choice depends on the utility system you're designing.
